PLOTTER: ADD-IN FOR PCAN EXPLORER 7

SKU: IPES-007087
(0)
$240

Orders placed before 2:30 Pacific Time usually ship the same day.

  • American Express
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Items are delivered with essential accessories and easy-to-follow instructions.

Questions?

Contact us.

Add-in for configurable display of signal curves.

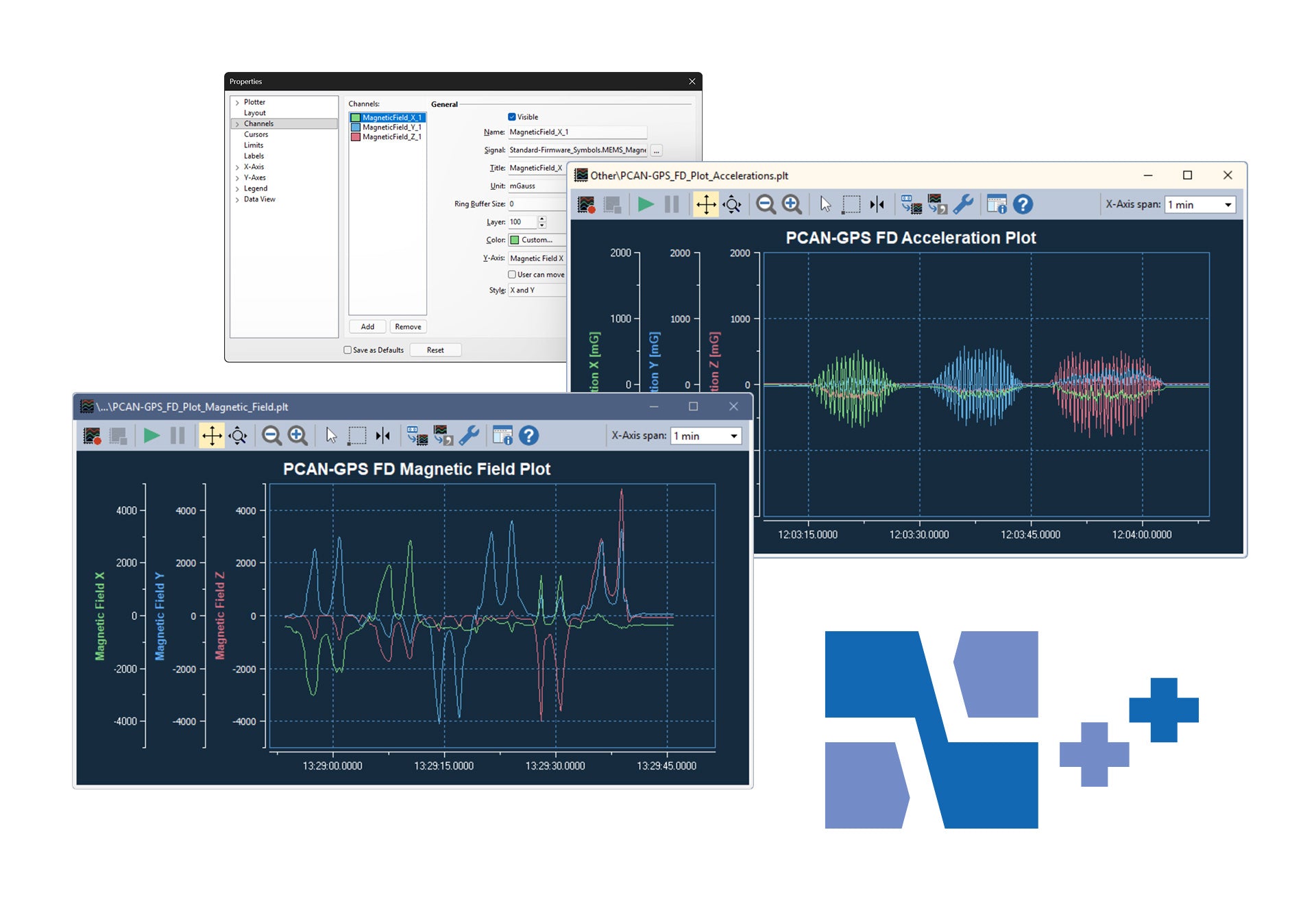

This line recorder allows the recording and graphical representation of any number of signal curves. The data of incoming and outgoing CAN messages as well as virtual variables and results of macro calculations can be used as a signal source.

FEATURES

  • Real-time display of signal courses
  • Unlimited number of recording channels
  • Unlimited number of Y-axes
  • Decoupling of the configuration of Y-axis and channels to improve presentation and handling
  • X-axis and Y-axes can be zoomed and scrolled freely, even during recording
  • Facility for automatic adaptation of axes to plots
  • Reversible Y-axes
  • Logarithmic scales
  • Cursor display for plot measurement
  • Save the current view as an image
  • Export the recording to a CSV file
  • Import of data recordings from CAN trace files (.trc)
  • Display of limiting values and value ranges
  • Comprehensive formatting options for displaying curves, axes, and the plotter layout

SYSTEM REQUIREMENTS

  • PCAN-Explorer 7 with matching license

Plot Viewer: The free Windows software Plot Viewer allows the recordings to be displayed without installing the PCAN Explorer. You can find more information about this product on its corresponding product page.

SCOPE:

  • Installations files for Plotter Add-in
  • Single user or floating license
  • Note: Software delivery as a download. Alternative installation media on request.

Ordering Add-ins for existing PCAN-Explorer 7 licenses:

If you would like to reorder add-ins for an existing PCAN-Explorer 7 license, we require your license ID. You can find the ID in the PCAN-Explorer (menu Help > About PCAN-Explorer) and in the PEAK License Manager. Please enter the license ID in the comment field of your order.

Other Add-Ins Available:

UPGRADING

UPGRADING FROM 6 to 7

Below shows the potential discounts on upgrades from Explorer 6 to 7. This includes add-ins as well.

Discount Savings % Chart:



UPGRADE PROCEDURE:

Upgrading from PE6 to PE7 for single machine licenses:

Customer provides current PE6 license ID, upgrade cost is calculated, once paid we send the new PE7 license via email, old PE6 license becomes invalid.

Upgrading from PE6 to PE7 for portable licenses (USB License Dongle):

Provide your PE6 license ID, we calculate the upgrade cost, then customer returns old PE6 USB licensed dongle, upon receipt at Phytools and once paid, we will email a new PE7 single user license and ship the NEW PEAK License Dongle to the customer. Any PE6 add-ins must also be upgraded.

For further information contact sales@phytools.com

NOTE*: AVAILABILITY & SUPPORT OF PCAN-EXPLORER 6 add-ins

  •  PCAN-Explorer 6 and its Add-Ins will be supported until January 2027 (~ 1 year)
     For this period, only security updates/bug fixing will be continued.
