RevPi Core S

SKU: KU-PR100359

(0)

$339 USD

In stock

Usually ships within 24 hours if in stock.

Please Select Part Number KU-PR100359 (8GB) KU-PR100360 (16GB) KU-PR100361 (32GB)

Orders placed before 2:30 Pacific Time usually ship the same day.

Items are delivered with essential accessories and easy-to-follow instructions.

Questions?

A Robust Open-Source IPC Based on Raspberry Pi

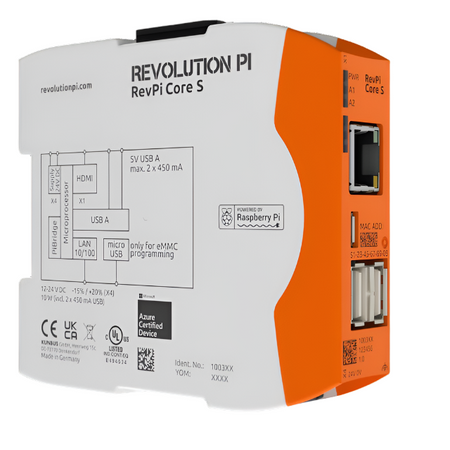

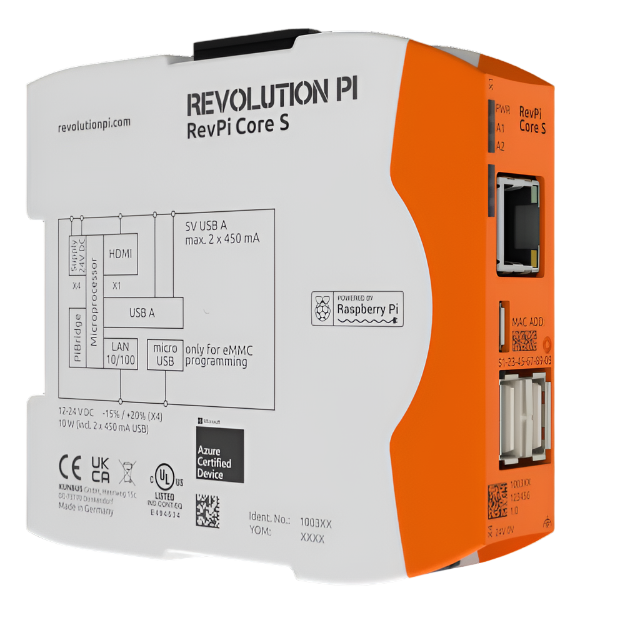

The new RevPi S and SE series are based on the brand-new Raspberry Pi Compute Module 4S. The series are an intermediate step between the RevPi Core 3+ series and the RevPi 4 series. The RevPi Core S is the updated version of the RevPi Core 3+ based on the Compute Module 3+. The Core S supports all gateways, including the I/O expansion modules as well as the gateway expansion modules.

The quad-core RevPi Core S comes equipped with the Raspberry Pi Compute Module 4S for the ultimate in high performance for complex tasks such as image processing. RevPi Core S comes equipped with an adapted Raspbian Jessie with an RT patch. In addition to quadrupling the number of CPUs (Broadcom BCM2711), improvements to this latest version include 1 GB of RAM and 1.5 GHz clock rate, and 8 or 32 GB of eMMC flash memory.

Consisting of open hardware and software, the RevPi Core S IPC meets the EN61131-2 standard. Its modular design allows for it to be enhanced with digital and analogue I/O modules as well as appropriate fieldbus gateways. Mounted in a DIN rail housing, the RevPi Core S has USB, ethernet and HDMI ports, and runs on the standard industrial 24-volt power supply.

Lastly, the RevPi Core S has Master and Slave capabilities for the two highly popular communication protocols Modbus TCP and Modbus RTU. Expensive external gateways are no longer required. The RevPi Core S is therefore an economical and logical choice for use as an industrial PC.

Review the UL Certificate.

Features
Tech Specs
Documents
Downloads

Housing dimensions (HxWxD)	96 x 22.5 x 110.5 mm
Housing type	DIN rail housing (for DIN rail version EN 50022)
Housing material	Polycarbonate
Weight	approx. 115 g
Protection class	IP20
Power supply	12-24 V DC -15 % / +20 %, reverse polarity protected 1
Max. power consumption	10 W (incl. 900 mA total USB load) 2
Operating temperature	-25 °C to +55 °C
Storage temperature	-40 °C to +85 °C
Humidity (40 °C)	up to 93 % (non-condensing)
Interfaces	2 x USB A (Total current consumption from both sockets max. 900 mA) 2 1 x RJ45 10/100 Ethernet 1 x Micro-USB (solely for image transfer to eMMC) 1 x Micro HDMI 2.0a (4K) 2 x PiBridge system bus
Connectors	1 x 4-pole screw-type terminal for power supply
Processor	Broadcom BCM2711, quad-core Arm Cortex-A72
Clock rate	1.5 GHz
Processor cooling	Passive with heat sink
RAM	1 GB LPDDR4
Flash memory	8 GB (article no.: 100359) / 16 GB (article no.: 100360) / 32 GB (article no.: 100361)
Compatible modules for system expansion	All RevPi IO modules and RevPi Gateway modules can be connected via the PiBridge system bus.
ESD protection	4 kV / 8 kV (according to EN 61131-2 and IEC 61000-6-2)
EMI tests	Passed (according to EN 61131-2 and IEC 61000-6-2)
Surge / Burst tests	Passed (according to EN 61131-2 and IEC 61000-6-2)
Buffer time RTC	min. 24 h
Optical indicator	3 status LEDs (bi-color), two of them freely programmable
Conformity	CE, RoHS
UL certification	Yes, UL-File-No. E494534 Note: The device may only be supplied from circuits that comply with Class 2 or Safety Extra Low Voltage (SELV) according to Class 9.4 of UL 61010-1.
