RevPi Core S

SKU #: KU-PR100359, KU-PR100360, KU-PR100361
by KUNBUS

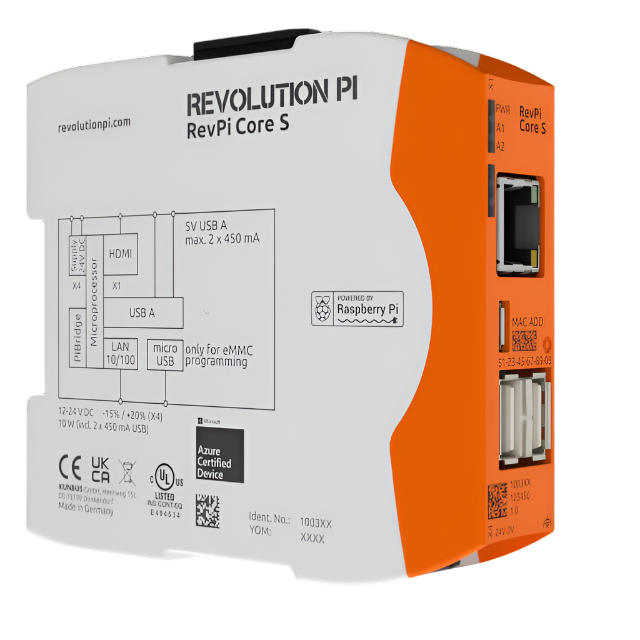

A Robust Open Source IPC Based on Raspberry Pi

The new RevPi S and SE series are based on the brand-new Raspberry Pi Compute Module 4S. The series are an intermediate step between the RevPi Core 3+ series and the RevPi 4 series. The RevPi Core S is the updated version of the RevPi Core 3+ based on the Compute Module 3+. The Core S supports all gateways, including the I/O expansion modules as well as the gateway expansion modules.

The quad-core RevPi Core S comes equipped with the Raspberry Pi Compute Module 4S for the ultimate in high performance for complex tasks such as image processing. RevPi Core S comes equipped with an adapted Raspbian Jessie with an RT patch. In addition to quadrupling the number of CPUs (Broadcom BCM2711), improvements to this latest version include 1 GB of RAM and 1.5 GHz clock rate, and 8 or 32 GB of eMMC flash memory.

Consisting of open hardware and software, the RevPi Core S IPC meets the EN61131-2 standard. Its modular design allows for it to be enhanced with digital and analogue I/O modules as well as appropriate fieldbus gateways. Mounted in a DIN rail housing, the RevPi Core S has USB, ethernet and HDMI ports, and runs on the standard industrial 24-volt power supply.

Lastly, the RevPi Core S has Master and Slave capabilities for the two highly popular communication protocols Modbus TCP and Modbus RTU. Expensive external gateways are no longer required. The RevPi Core 4S is therefore an economical and logical choice for use as an industrial PC.

Review the UL Certificate.

Graphic illustrating the differences between the Raspberry Pi Compute Modules


Housing dimensions (HxWxD) 96 x 22.5 x 110.5 mm
Housing type DIN rail housing (for DIN rail version EN 50022)
Housing material Polycarbonate
Weight approx. 115 g
Protection class IP20
Power supply 12-24 V DC -15 % / +20 %, reverse polarity protected 1
Max. power consumption 10 W (incl. 900 mA total USB load) 2
Operating temperature -25 °C to +55 °C
Storage temperature -40 °C to +85 °C
Humidity (40 °C) up to 93 % (non-condensing)
Interfaces 2 x USB A (Total current consumption from both sockets max. 900 mA) 2
1 x RJ45 10/100 Ethernet
1 x Micro-USB (solely for image transfer to eMMC)
1 x Micro HDMI 2.0a (4K)
2 x PiBridge system bus
Connectors 1 x 4-pole screw-type terminal for power supply
Processor Broadcom BCM2711, quad-core Arm Cortex-A72
Clock rate 1.5 GHz
Processor cooling Passive with heat sink
RAM 1 GB LPDDR4
Flash memory 8 GB (article no.: 100359) / 16 GB (article no.: 100360) / 32 GB (article no.: 100361)
Compatible modules for system expansion All RevPi IO modules and RevPi Gateway modules can be connected via the PiBridge system bus.
ESD protection 4 kV / 8 kV (according to EN 61131-2 and IEC 61000-6-2)
EMI tests Passed (according to EN 61131-2 and IEC 61000-6-2)
Surge / Burst tests Passed (according to EN 61131-2 and IEC 61000-6-2)
Buffer time RTC min. 24 h
Optical indicator 3 status LEDs (bi-color), two of them freely programmable
Conformity CE, RoHS
UL certification Yes, UL-File-No. E494534
Note: The device may only be supplied from circuits that comply with Class 2 or Safety Extra Low Voltage (SELV) according to Class 9.4 of UL 61010-1.
