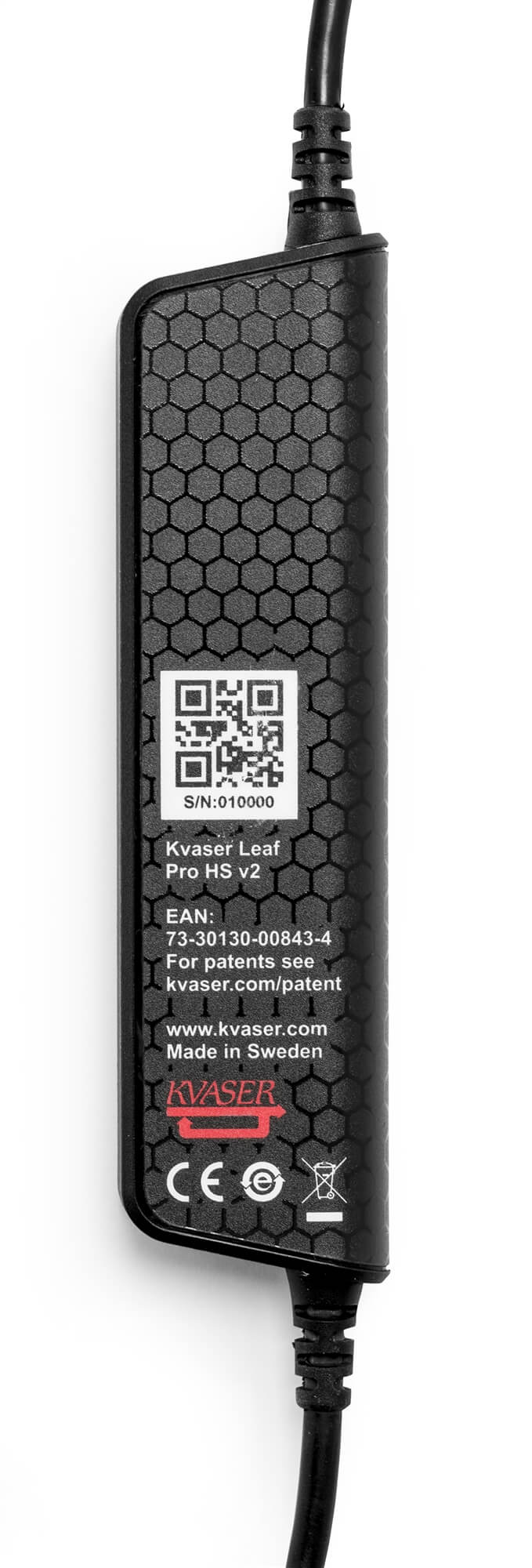

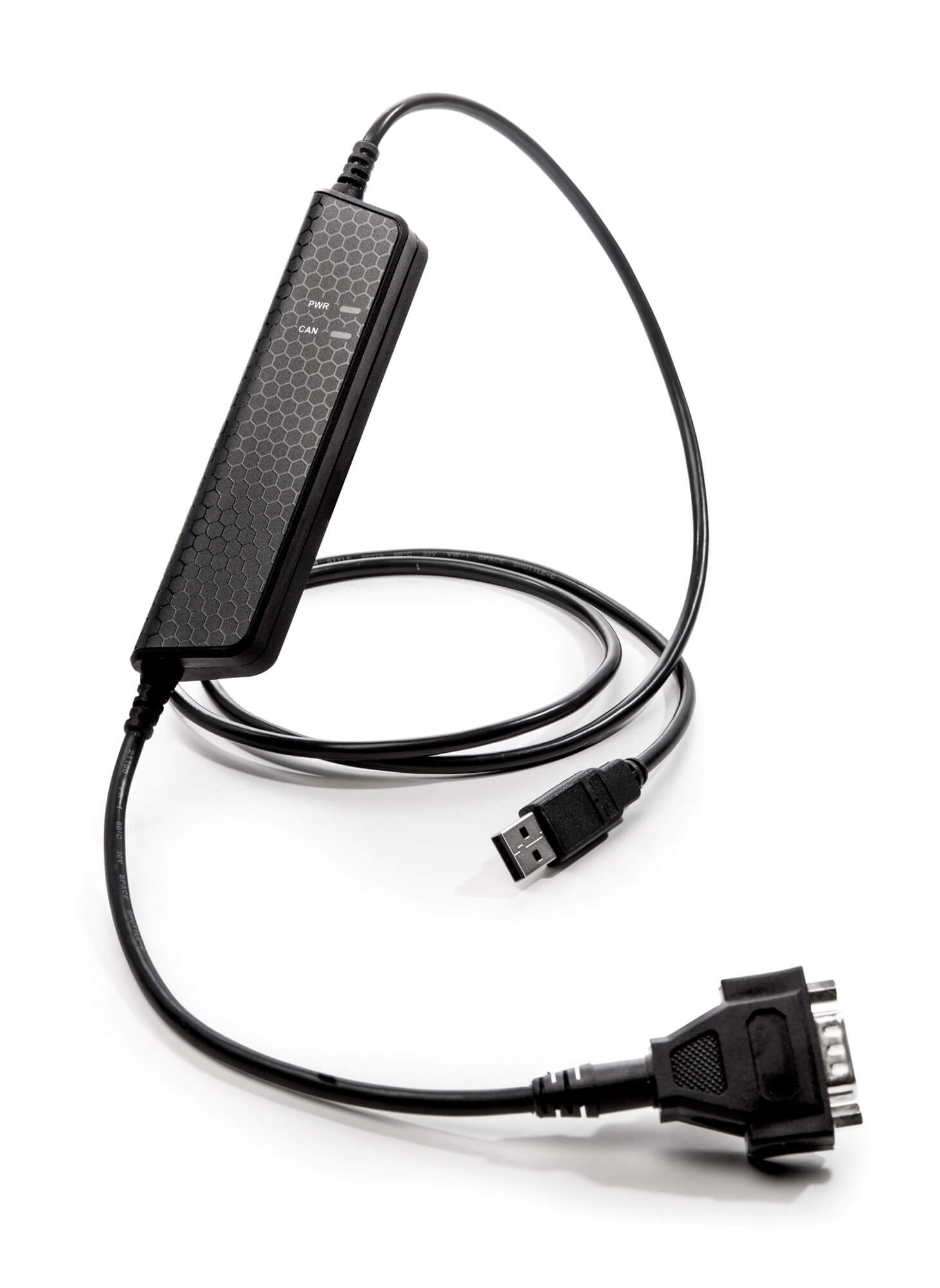

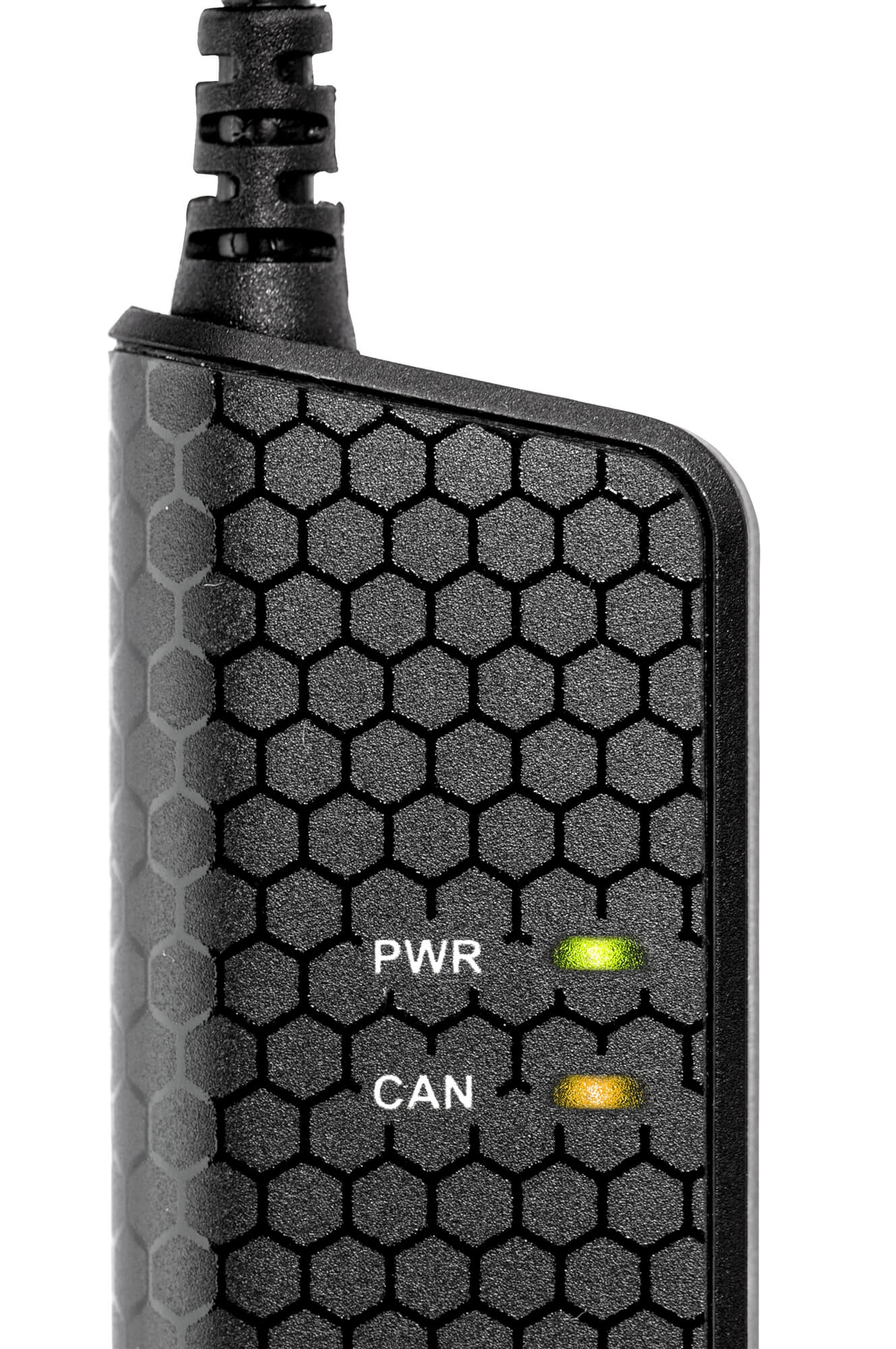

Kvaser's latest addition to the popular "Leaf" family brings programmability to user’s fingertips along with support of the faster CAN with Flexible Data-Rate (CAN FD). Kvaser’s Pro versions boast a high transmit capability that meets the needs of CAN FD frames. It also supports customization using the t programming language from Kvaser. For example, users can run a t program to speed up file transfer protocols or to emulate ECUs and other devices by generating traffic and handling protocols. This model has a standard 9-pin DSUB, bus is also available with a 16-pin OBDII connector. Please see Kvaser Leaf Pro HS v2 OBDII for details.
• Supports CAN FD.
• Quick and easy plug-and-play installation.
• Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
• Power is taken from the USB bus.
• Galvanic isolation.
• High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
• Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
• Kvaser MagiSync provides automatic time synchronization between several PC-to-bus interfaces connected to the same PC.
• Programming functionality to support interface mode e.g. Optimize protocol handling, pre-filter CAN messages directly on the interface, or simulate missing hardware.
• Simultaneous operation of multiple devices.
• 2-Year Warranty.
• Quick and easy plug-and-play installation.
• Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
• Power is taken from the USB bus.
• Galvanic isolation.
• High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
• Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
• Kvaser MagiSync provides automatic time synchronization between several PC-to-bus interfaces connected to the same PC.
• Programming functionality to support interface mode e.g. Optimize protocol handling, pre-filter CAN messages directly on the interface, or simulate missing hardware.
• Simultaneous operation of multiple devices.
• 2-Year Warranty.
| Galvanic Isolation | Yes |
| Bitrate | 40-1000 kbit/s |
| Silent mode | Yes |
| Error frame generation | Yes |
| Error frame detection | Yes |
| Weight | 120 grams |
| Temp Range | -40...+85 degC |
| Material | Highly Durable Plastic |
| Maximum message rate, send | 20000 |
| Maximum message rate, receive | 20000 |
| Sound | No |
| Current Draw | max 195mA |
| Dimensions (WxLxH) | 17x165x20 mm () |
| Documentation | |
| Kvaser Leaf Pro HS v2 User's Guide | Version 1.7.699 |
| User’s Guide for the Kvaser Leaf | |
| Kvaser Leaf Pro HS v2 Datasheet | Version 2014 |
| Datasheet for the Kvaser Leaf Professional | |
| Driver | |
| Kvaser DIADEM Driver | Version 1.0.0 |
| This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser. | |
| Kvaser Drivers for Windows | Version 5.6.0 |
| Windows drivers for all our CAN hardware. Please check release notes for information on which Windows versions are supported. It also contain a driver for the virtual CAN bus. | |
| Kvaser Linux Driver and SDK | Version 5.3.0 |
| Linux driver and SDK for Kvaser PCIcan/PCIcanx, Kvaser PCIcanII, Kvaser PC104+, Kvaser PCIcanx II, Kvaser USBcan II, Kvaser Memorator*, Kvaser Leaf family, Kvaser Memorator Pro**, Kvaser USBcan Pro and VirtualCAN. For LAPcan and LAPcan II, you should use version 4.2 of the driver. (*) only with USBcanII functionality, (**) only with USBcan Pro functionality | |
| Firmware | |
| Kvaser Device Firmware | Version 3.2.302 |
| Firmware update for Kvaser Leaf (all types), Kvaser Memorator Professional, Kvaser Memorator SemiPro, Kvaser Memorator Light USBcan Professional, and Kvaser Blackbird. | |
| Kvaser Software | |
| Kvaser CANKing | Version 5.3.889 |
| A free of charge general-purpose CAN bus momnitor. Works with all CAN interfaces from Kvaser. Windows 200 and later recommended. | |
| Development Kits and Tools | |
| Kvaser CANlib SDK | Version 5.6.0 |
| Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Link libraries, header files, sample programs, Microsoft Visual Basic and Borland Delphi components, documentation, and more. Note: you need to download and install the appropriate device drivers separately | |
| Kvaser LabView VI Library for CAN | Version 6.1.0 |
| Library for National Instrument's LabView version for all Kvaser CAN hardware. | |
| Remove old drivers | Version 3.9c |
| Driver removal program. This program will remove the CAN driver (version 3.2 or older) from your computer. This is a version intended for those who have installed CANLIB 3.2 or older. Use it only if you need to remove an old version of the driver from your computer. Contact technical support if you have any questions. |
