Kvaser Mini PCI Express HS

SKU KV-00688-1
Save 9%
Original price $435
Current price $395

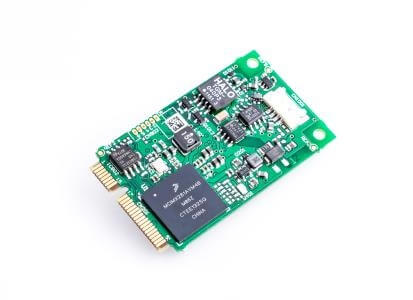

The Kvaser Mini PCI Express HS is a highly-integrated CAN add-on board that allows embedded system developers to add CAN functionality to any standard computer board with mini PCI Express capability. The piggyback CAN board offers a single channel, high speed CAN interface with error frame detection and on-board buffer. This board has a low profile connector that complies with the mini PCI Express standard, which connects via a cable to a DSUB connector (or other type) at the computer housing. With just the CAN communication link itself exposed, this arrangement protects total system EMC performance because all the electronics remain inside the computer housing. In car or truck applications, this can be particularly important. Designed for applications requiring high performance but a small form factor, this board is ideal for embedded data acquisition systems and is particularly tailored for fleet management.

  • Supports a bit rate from 40 to 1000 kbit/s and a CAN transfer rate up to 20000 messages/s.
  • Time stamp accuracy is 25 µs.
  • Low profile connector complies with the mini PCI Express standard, which connects via a cable to a DSUB (or other type) at the computer housing.
  • A 4 pin Molex connector provides single CAN channel access.
  • Complies with EN 61000-6-2:2005, specifying EMC immunity for industrial environments.
  • Operates over the industrial temperature range of -40 to +85°C.
  • Kvaser's free of charge CANLIB SDK can be used to develop software for the Mini PCI Express HS board.
  • Support for Linux, in the form of drivers and a dedicated SDK, are available as a separate download
  • Support for SocketCAN, see elinux.org for details.
  • Includes Molex to DSUB9 cable adapter.
Property Value
The information herein is subject to change without notice.
Galvanic Isolation Yes
Bitrate 40-1000 kbit/s
Silent mode Yes
Error frame generation No
Error frame detection Yes
Weight 6 grams
Timestamp resolution 25μs
On board buffer No
Maximum message rate, send 18000
Maximum message rate, receive 20000
Sound No
Clock synchronization N/A
Temperature range -40°C to +85°C
Dimensions (WxLxH) 30x50x5mm
Silent mode Yes
Error frame generation Yes
Error frame detection Yes
Weight 5 grams
Timestamp resolution 1 μs
On board buffer N/A
Maximum message rate, send 20000
Maximum message rate, receive 20000
Sound No
Clock synchronization N/A
Temperature range -40°C to +85°C
Dimensions (WxLxH) 30x51x5mm
Datasheet
Kvaser Mini PCI Express HS Datasheet
<Kvaser Mini PCI Express Users Guide
User guide for Kvaser Mini PCI Express
Version V1.0.0
Kvaser DIADEM Driver
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Version 1.0.0
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check release notes for information on which Windows versions are supported. It also contain a driver for the virtual CAN bus.
Version 5.6.0
Kvaser CANKing
A free of charge general-purpose CAN bus momnitor. Works with all CAN interfaces from Kvaser. Windows 200 and later recommended.
Version 5.3.889
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Link libraries, header files, sample programs, Microsoft Visual Basic and Borland Delphi components, documentation, and more. Note: you need to download and install the appropriate device drivers separately
Version 5.6.0
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView version for all Kvaser CAN hardware.
Version 6.1.0
Kvaser Linux Driver and SDK
Linux driver and SDK for Kvaser PCIcan/PCIcanx, Kvaser PCIcanII, Kvaser PC104+, Kvaser PCIcanx II, Kvaser USBcan II, Kvaser Memorator*, Kvaser Leaf family, Kvaser Memorator Pro**, Kvaser USBcan Pro and VirtualCAN. For LAPcan and LAPcan II, you should use version 4.2 of the driver. (*) only with USBcanII functionality, (**) only with USBcan Pro functionality
Version 5.3.0
Remove old drivers
Driver removal program. This program will remove the CAN driver (version 3.2 or older) from your computer. This is a version intended for those who have installed CANLIB 3.2 or older. Use it only if you need to remove an old version of the driver from your computer. Contact technical support if you have any questions.
Version 3.9c
Cleanup
Driver removal program. This program will remove the CAN driver (version 3.9 or older) from your computer. This program will not work with driver 4.0 or later. Use it only if you need to remove an old version of the driver from your computer.
Version 3.9c
