Kvaser PCIEcan 4xHS

KV-00683-6

Product is no longer available.

Please see the manufacturer's recommended replacement, the PCIEcan 4xCAN v2 (KV-01414-5).

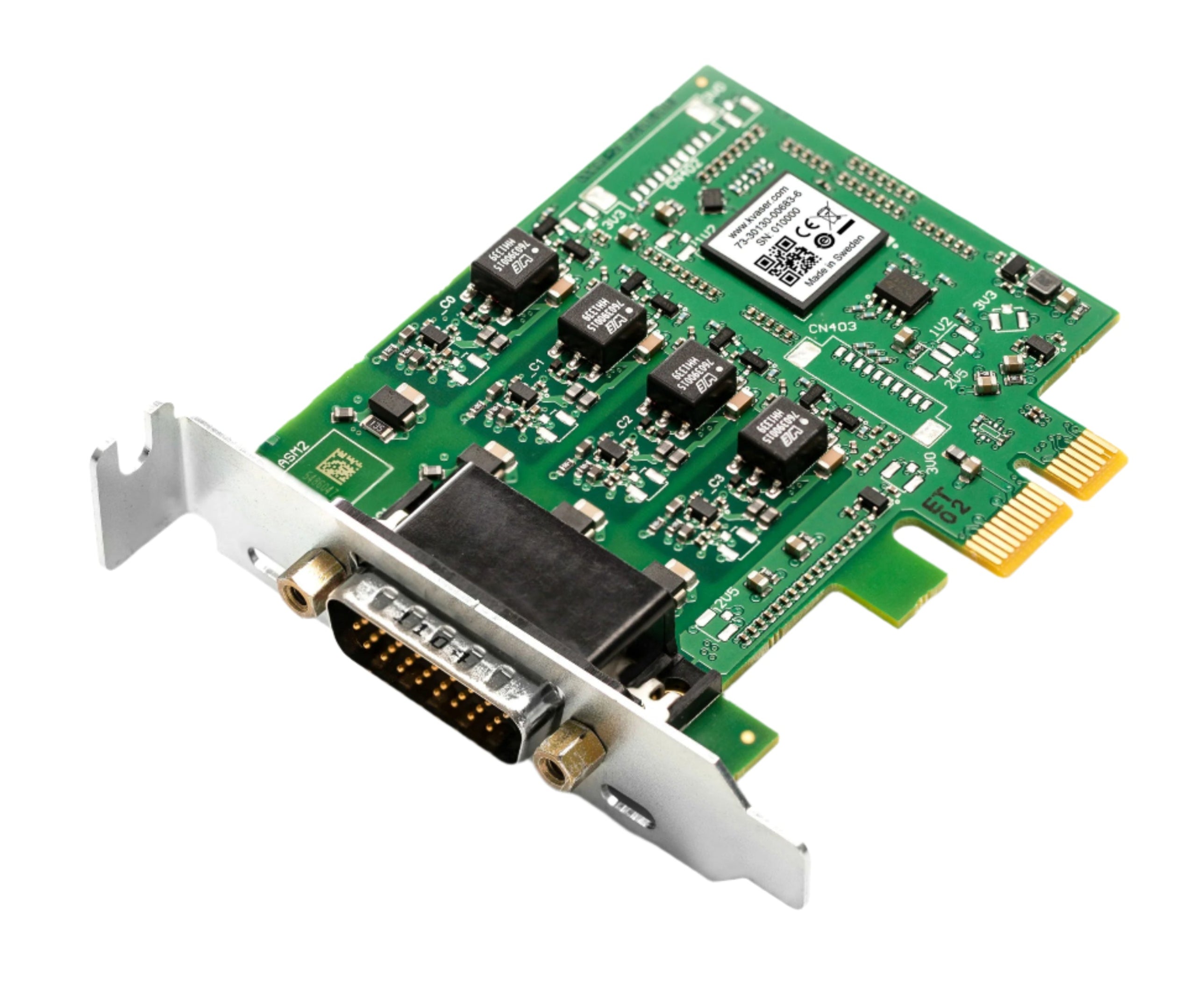

Kvaser PCIEcan 4xHS is a highly integrated, high speed CAN network card that adds four high speed controller area network (CAN) channels to any standard computer board with PCI Express capability. Offering silent mode, error frame detection and an on-board buffer, this small form factor add-on board fits many embedded data acquisition systems and supports CAN FD.


  • Supports CAN FD.
  • Quick and easy plug-and-play installation.
  • Supports High Speed CAN (ISO 11898-2).
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • Low profile card (86 x 69 mm) allows ultra-compact systems.
  • Implements Kvaser’s CAN IP in an FPGA, resulting in high max message rate.

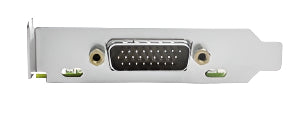

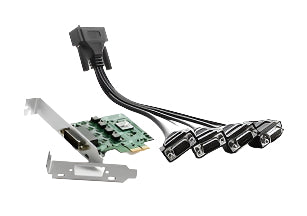

  • Four CAN Hi-Speed channels in a single 26-pin HD D-SUB CAN connector. The HD26 splitter connects to the CAN bus via four 9-pin DSUB connectors.

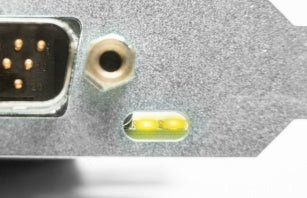

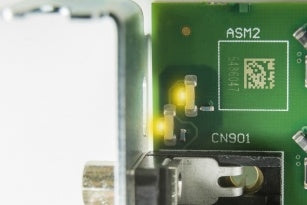

  • Four yellow LEDs that indicate when a CAN message was received or sent.
  • Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
  • Supports silent mode for analysis tools – listens to the bus without interfering.
  • Detection and generation of error frames and remote frames.
  • Designed for standard and industrial computers.
  • Galvanically isolated CAN bus drivers.
  • Wide operating temperature of 0° C to +85° C.
  • Supports the Kvaser Linx.

Warranty

2-Year Warranty. See our General Conditions and Policies for details.

Property Value
The information herein is subject to change without notice.
Galvanic Isolation Yes
Certificates CE, RoHS
Bitrate 40-1000 kbit/s
Silent mode Yes
Error Frame Generation No
Error Counters Reading Yes
Weight 100 grams
Timestamp resolution (µs) 1 μs
Channels
Maximum message rate, send 20000
Maximum message rate, receive 20000
Sound No
Connectors 26-pin HD D-SUB
Interfaces PCI Express
Height 20 mm
Length 86 mm
OS Win XP, Linux, Win 7, Win Vista, Win 10, Win 8
Datasheet
Kvaser PCIEcan 4xHS Datasheet
Kvaser PCIEcan 4xHS Users Guide
User's guide for PCIEcan 4xHS
Version V3.6.220215
Kvaser SocketCAN Device Drivers
Kvaser SocketCAN Drivers for Linux.
Version V1.10.477
Kvaser Linux Driver and SDK
Linux driver and SDK for Kvaser PCIcan/PCIcanx, Kvaser PCIcanII, Kvaser PC104+, Kvaser PCIcanx II, Kvaser USBcan II, Kvaser Memorator*, Kvaser Leaf family, Kvaser Memorator Pro**, Kvaser USBcan Pro and VirtualCAN. For LAPcan and LAPcan II, you should use version 4.2 of the driver. (*) only with USBcanII functionality, (**) only with USBcan Pro functionality
Version V5.38.841
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check release notes for information on which Windows versions are supported. It also contain a driver for the virtual CAN bus.
Version V5.38.841
Kvaser Firmware Update Tool
Firmware Update tool for most Kvaser devices.
Version V4.27.841
Python module
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Version V1.20.360
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
Version V5.38.841
Kvaser CANKing
A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.
Version V6.21.288
