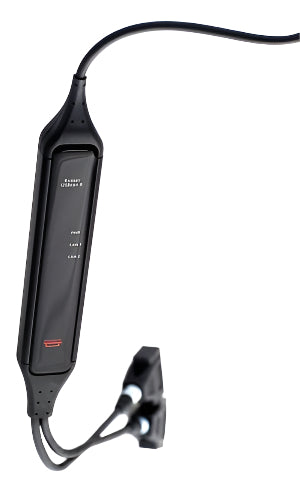

Kvaser USBcan R

KV-00579-2
Save 12%
$1,199.00
$1,055.00
The Kvaser USBcan R provides two CAN bus interfaces through a single USB connection. It is a robust, easy to carry device designed for high-end applications. With quick reaction times and high data throughput, the Kvaser USBcan R is perfect for rapid ECU re-flashing, advanced bus analyzers and efficient development work.
  • IP67 rated lightweight aluminium housing
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
  • Low power consumption
  • Polyurethane cabling for extreme environments
  • Galvanic isolation of the CAN bus driver stage to protect the hardware>
  • 100% compatible with applications written for all Kvaser hardware with Kvaser's CANlib
  • Equipped with a 110 cm (44 in.) long USB cable and a 30 cm (12 in.) long CAN cable
  • Interfaces the CAN bus with two 9-pin D-SUB connectors
  • Designed for USB 2.0, backward compliant with USB 1.1
  • Quick and easy Plug-and-Play installation
Galvanic Isolation Yes
Bitrate 20-1000 kbit/s
Silent mode No
Error frame generation No
Error frame detection Yes
Weight 200 grams
Timestamp resolution 100
On board buffer Yes
Maximum message rate, send 15000
Maximum message rate, receive 15000
Sound No
Clock synchronization N/A
Dimensions (WxLxH) 30x200x20 mm (1.2x7.9x0.8in.)
