PCAN-MicroMod FD ECU Adapter
Regular price
$659 USD
Couldn't load pickup availability
Orders placed before 2:30 Pacific Time usually ship the same day.
Items are delivered with essential accessories and easy-to-follow instructions.
Questions?
Simple connection for the PCAN-MicroMod FD ECU.

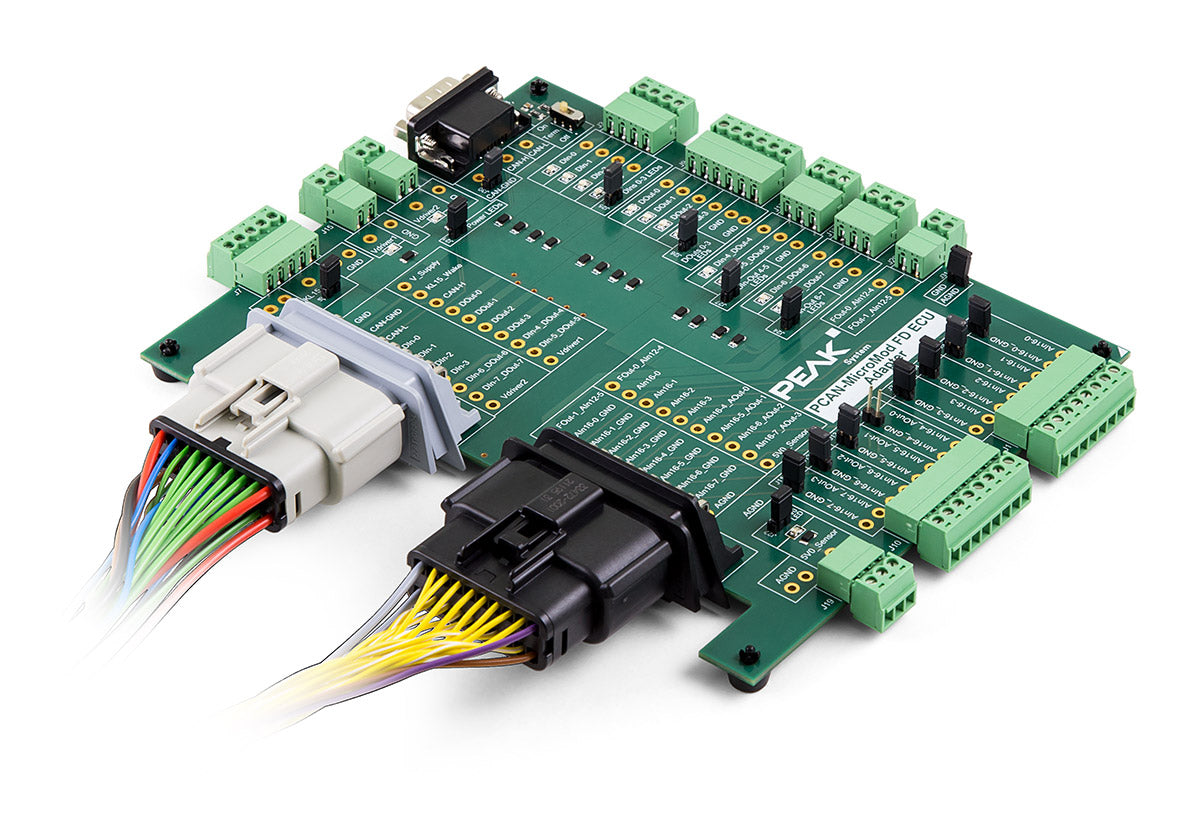

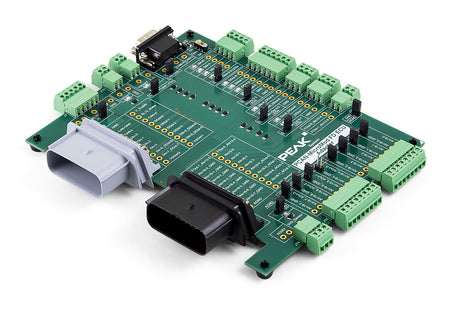

The PCAN-MicroMod FD ECU Adapter allows simplified wiring of the PCAN-MicroMod FD ECU using Phoenix screw terminal connectors for applications like configuration development and validation.
Technical Specifications:

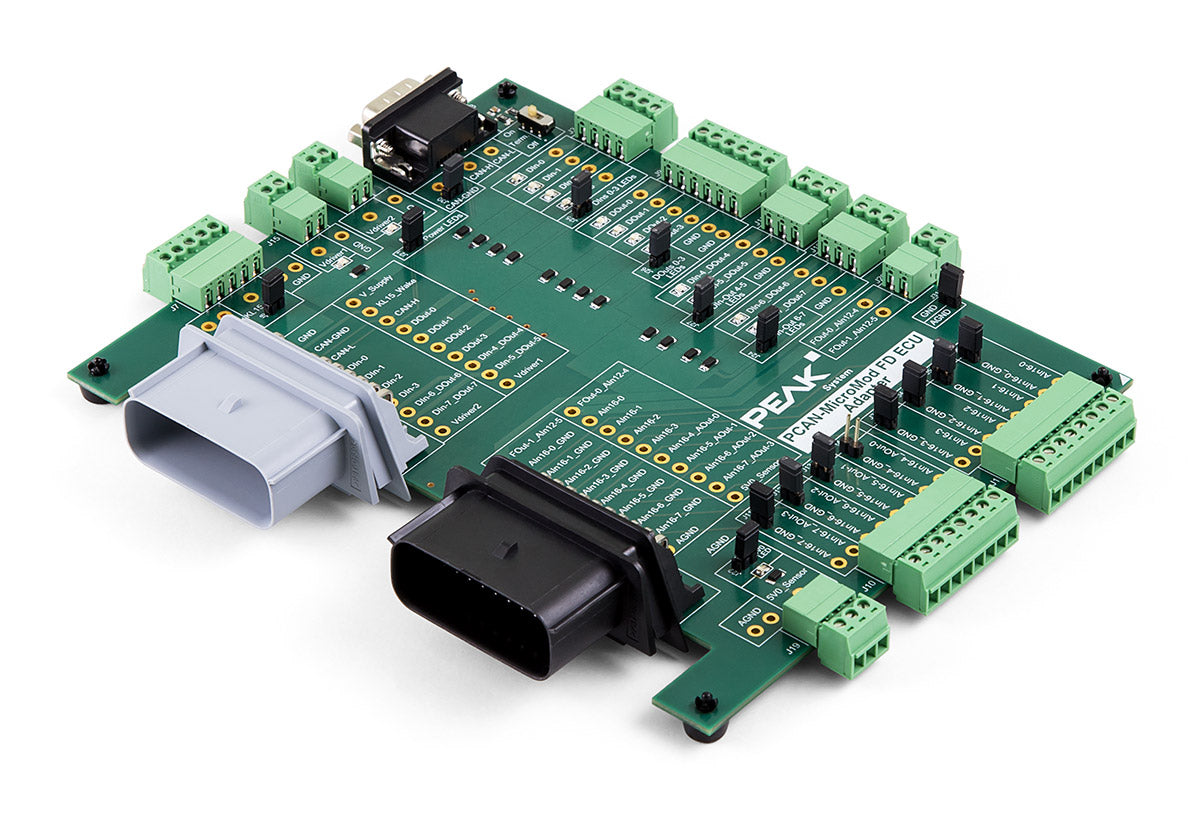

- Adapter board from automotive connectors (Molex MX150) to screw terminal strip connectors (Phoenix)
- Connection to PCAN-MicroMod FD ECU via color-coded cable set
- 9-pin D-Sub socket for CAN bus connection (in accordance with CiA® 106)
- Phoenix connectors for:
- Power supply and wake-up
- Supply for High-side switches
- Analog I/Os
- Digital I/Os
- Frequency outputs (Low-side)
- 5 V output (sensor supply)
- Switchable CAN termination of 120 Ω
- Status LEDs for digital I/Os, power supply, and 5 V output
- LEDs detachable via jumpers to avoid additional current consumption
- Jumpers to connect each analog input ground to the module ground (AGND)
Suitable to be used with:
- PCAN-MicroMod FD ECU: Universal, configurable control unit with I/O and CAN FD connection
Scope of Supply:
- PCAN-MicroMod FD ECU Adapter
- Pre-configured, color-coded cable set for connecting board and ECU
Additional information:
- PEAK-System Forum: Section for the PCAN-MicroMod FD ECU for questions and support
- PCAN-MicroMod FD ECU:Â Manual
- Vendor PEAK-System Technik
- SKU IPEH-003086
