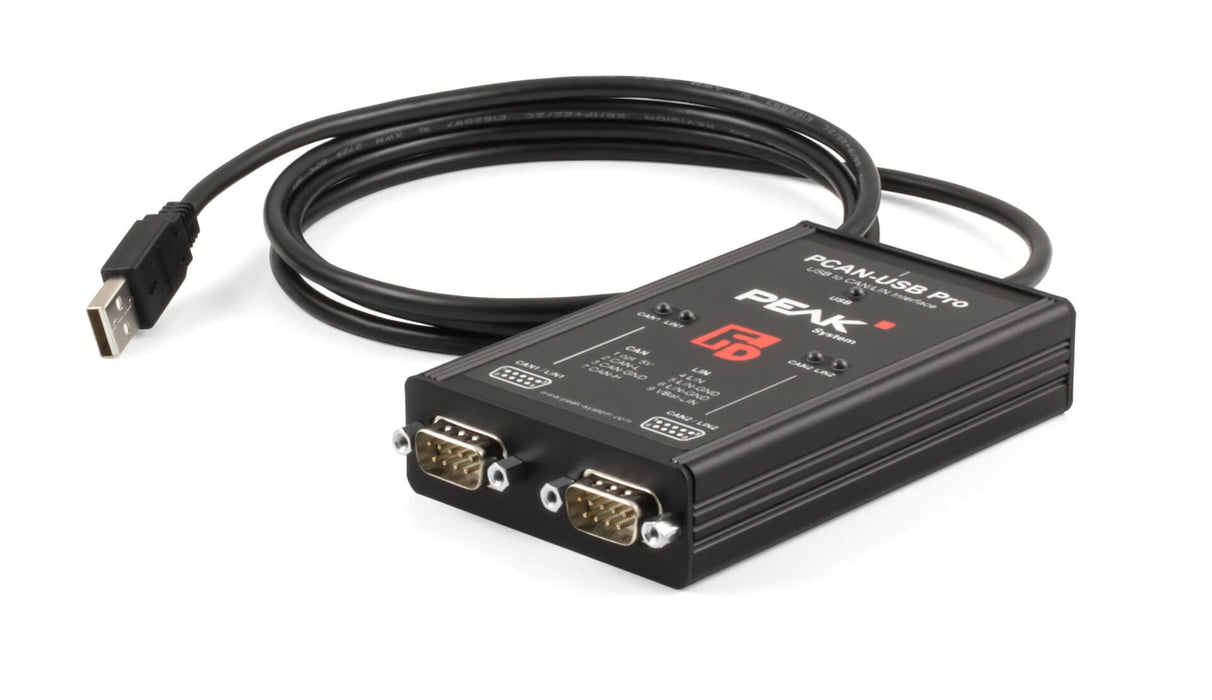

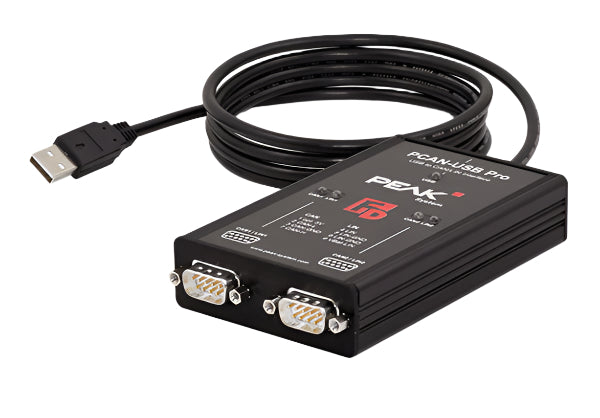

The new CAN FD Pro from PEAK-System, PCAN-USB Pro FD adapter enables the connection of CAN FD and LIN networks to a computer via USB. Two field busses can be connected at the same time, up to four with appropriate adapter cables (2 x CAN FD, 2 x LIN). Each CAN FD channel is separately isolated against USB and LIN with a maximum of 500 Volts. Its robust aluminum casing makes the PCAN-USB Pro FD adapter suitable for mobile applications.
The recently released CAN FD standard (CAN with Flexible Data Rate) is primarily characterized by higher bandwidth for data transfer. Under CAN FD a maximum of 64 data bytes per CAN FD frame (instead of 8 so far) can be transmitted with bit rates up to 12 Mbit/s. CAN FD is downward-compatible to the CAN 2.0 A/B standard, thus CAN FD nodes can be used in existing CAN networks. However, in this case the CAN FD extensions are not applicable.
Note: This product replaces the PCAN-USB Pro Adapter, part# IPEH-002061 which has been discontinued end of 2014.
The recently released CAN FD standard (CAN with Flexible Data Rate) is primarily characterized by higher bandwidth for data transfer. Under CAN FD a maximum of 64 data bytes per CAN FD frame (instead of 8 so far) can be transmitted with bit rates up to 12 Mbit/s. CAN FD is downward-compatible to the CAN 2.0 A/B standard, thus CAN FD nodes can be used in existing CAN networks. However, in this case the CAN FD extensions are not applicable.
Note: This product replaces the PCAN-USB Pro Adapter, part# IPEH-002061 which has been discontinued end of 2014.
- Transmitting and receiving of CAN FD and LIN messages using 2 D-Sub connections (both with pin assignment for the CAN FD and LIN bus)
- Adapter for High-speed USB 2.0 (compatible to USB 1.1 and USB 3.0)
- Time stamp resolution 1 μs
- 5-Volt supply at the D-Sub connector can be activated through a solder jumper, e.g. for external bus converter
- Voltage supply via USB
- Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
CAN operation properties:
- FPGA implementation of the CAN FD controller
- Complies with CAN specifications 2.0 A/B and FD 1.0
- CAN FD bit rates for the data field (64 bytes max.) from 40 kbit/s up to 12 Mbit/s
- CAN bit rates from 40 kbit/s up to 1 Mbit/s
- NXP TJA1044GT CAN transceiver
- Each CAN FD channel is separately opto-decoupled against USB and LIN up to 500 V
- CAN termination can be activated through a solder jumper
- Measurement of bus load including error frames and overload frames
- Induced error generation for incoming and outgoing CAN messages
LIN operation properties:
- Bit rates from 1 kbit/s up to 20 kbit/s
- TJA1021/20 LIN transceiver
- Both LIN channels (common ground) are optodecoupled against USB and CAN FD
- Can be used as a LIN master or slave (1 ms master task resolution)
- Automatic bit rate, frame length, and checksum type recognition
- Autonomous scheduler with support for unconditional, event, and sporadic frames
- Hardware can work through a schedule table (up to 8 schedule tables can be configured with a total of 256 slots)
| Interface(s) | PC: USB plug type A, high-speed USB 2.0 (compatible to USB 1.1 and 3.0) CAN/LIN: CAN FD 1.0 (compatible with CAN 2.0) ISO 11898-2, complies with CiA-recommendation DS 102 |
| Power Consumption | USB 5V max. 200 mA |
| Baud Rate | CAN 2.0: 40 kBit/s ... 1 MBit/s; CAN FD: 40 kBit/s ... 12 MBit/s LIN: 1 kbit/s – 20 kbit/s |
| Pinout | C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3) |
| Enclosure | IP20 |
| Transceiver | CAN: TJA1044GT; LIN: TJA1021/22 |
| Dimensions | 114 x 71.5 x 24 mm (without connection cable) |
| Weight | 220 g (with USB cable) |
| Software | Driver: Windows® 10, 8.1, 7 and Linux Tools: PCAN-View for Windows®, PLIN-View Pro |
| Isolation | 500 VDC |
| Controller(s) | FPGA Implementation |
| Connector(s) | USB |
| Timestamp Resolution | 1 microsecond |
| Specification | CAN/LIN: CAN FD 1.0, CAN 2.0A (Standard format) and 2.0B (extended format) , LIN specification 2.1 |
| Operating temperature | -40°C to +85°C |
| Storage temperature | -40°C to +100°C |
| Relative humidity | 15% to 90% (non-condensing) |
| EMC directives | EN 55024:2011-09 EN 55022:2011-12 EC directive 2004/108/EG |
| Certifications | CE, RoHS |
| Documentation |
| PCAN-USB Pro FD manual |
| User's Manual in English |
| Software |
| PCAN-USB FD package |
| Package contains device drivers for Windows® 10, 8.1, 7 (32/64-Bit), the PCAN-Basic API, the CAN monitor PCAN-View, the LIN monitor PLIN-View Pro and documentation (German and English). |
| PCAN-View |
| Windows® compatible software for displaying CAN messages |
| PCAN-Flash |
| Windows® software for flashing firmware via CAN |
| Drivers |
| Device driver setup for Windows |
| PEAK-System installation package for device drivers and tools for Windows® 10, 8.1, 7 (32/64-bit) for our PC interfaces. Included tools: PEAK-CPL, PCAN-View, PLIN-View Pro, and Virtual PCAN-Gateway |
| Device driver for Linux |
| Device drivers for PEAK CAN interfaces from Kernel 2.4 and higher. |
| Development Kits and Tools |
| PCAN-Basic API |
| API for the development of applications with CAN and CAN FD connections for Windows® 10, 8.1, 7 (32/64-Bit) |
| PCAN-Basic API (Linux) |
| API for the development of applications with CAN connection for Linux |
| PLIN-API |
| API for the development of applications with LIN connection for Windows® |
| PCAN-CCP API |
| API for the development of software for the communication with ECUs according to the CAN Calibration Protocol (CCP) |
| PCAN-XCP API |
| API for the development of software for the communication with ECUs according to the Universal Measurement and Calibration Protocol (XCP) |
| PCAN-ISO-TP API |
| API for the transfer of data packages according to ISO-TP (ISO 15765-2) |
| PCAN-UDS API |
| API to communicate with control devices according to UDS (ISO 14229-1) |
| PCAN-OBD-2 API |
| API for the vehicle diagnostics according to OBD-2 (ISO 15765-4) |
| PCAN-PassThru API |
| Pass-Thru API and connection of Pass-Thru software to PEAK CAN interfaces. Installation for Windows® 10, 8.1, 7 (32/64-bit) includes interface DLLs, a configuration software, the PCAN-Basic API, and the PCAN-ISO-TP API. The download also contains the documentation (English). |
