Kvaser Memorator R SemiPro CAN Datalogger

SKU #: KV-00490-0
Save 5%
Original price $2,180
Current price $2,080

This product is EOL as of Jan 2023. Please consider the Kvaser Memorator Pro 2xHS v2 or the Kvaser Memorator 2xHS v2 as the recommended replacements.

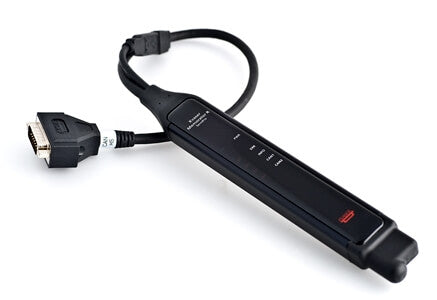

Kvaser Memorator R SemiPro is a small, yet advanced portable CAN data logger suitable for use in harsh environments. Because the SD disk is located inside the unit and soldered onto the PCB this data logger will function flawlessly even when exposed to shock and vibration. The Kvaser Memorator R SemiPro can also be used as a powerful dual-channel CAN to USB interface.

See Kvaser Memorator R SemiPro datasheet for more details.

  • One device for desktop and laptop
  • Functionality of a standalone CAN bus data logger and a USB CAN bus interface in a single device
  • Support for Kvaser Linx J1587
  • Quick and easy plug-and-play installation
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B) identifiers
  • CAN messages are time-stamped with 2 microseconds resolution
  • Large on-board RAM buffer for CAN messages
  • 100% compatible with applications written for Kvaser Leaf, LAPcan, PCIcan, PCcan, USBcan, etc., with Kvaser's CANlib
  • Galvanic isolation to protect the hardware
  • Power from CAN bus or from the USB side
  • Built-in real time (calendar) clock with battery backup
  • Logger status is indicated with five externally visible LEDs
  • IP67 rated lightweight aluminium housing
Property Value
The information herein is subject to change without notice.
Galvanic Isolation Yes
Bitrate 20-1000 kbit/s
Silent mode Yes
Error frame generation Yes
Error frame detection Yes
Weight 190 grams
Timestamp resolution 2
On board buffer Yes
Maximum message rate, send 20000
Maximum message rate, receive 20000
Sound No
Clock synchronization MagiSync
Dimensions (WxLxH) 30x200x20 mm (1.2x7.9x0.8in.)
Datasheet
Kvaser Memorator R SemiPro Datasheet
Kvaser Memorator R SemiPro Users Guide
User guide for Memorator R SemiPro
Version V6.3.220215
Kvaser Database Editor Users Guide
Kvaser Database Editor User's Guide
Version 2.0.0
Kvaser Memorator Professional Trigger Guide
Introduction to Kvaser Memorator Tools for Kvaser Memorator Professional.
Version 2.0.0
Kvaser Memorator Tools Introduction
Introduction to Kvaser Memorator Tools for Kvaser Memorator Professional.
Version 1.0.0
Kvaser SocketCAN Device Drivers
Kvaser SocketCAN Drivers for Linux.
Version V1.10.477
Kvaser Linux Driver and SDK
Linux driver and SDK for Kvaser PCIcan/PCIcanx, Kvaser PCIcanII, Kvaser PC104+, Kvaser PCIcanx II, Kvaser USBcan II, Kvaser Memorator*, Kvaser Leaf family, Kvaser Memorator Pro**, Kvaser USBcan Pro and VirtualCAN. For LAPcan and LAPcan II, you should use version 4.2 of the driver. (*) only with USBcanII functionality, (**) only with USBcan Pro functionality
Version V5.38.841
Kvaser DIADEM Driver
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Version V4.1.0
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check release notes for information on which Windows versions are supported. It also contain a driver for the virtual CAN bus.
Version V5.38.841
Kvaser Firmware Update Tool
Firmware Update tool for most Kvaser devices.
Version V4.27.841
Linux SDK Library
Linux SDK library.
Version V5.38.841
Python module
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Version V1.20.360
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView. Version for all Kvaser CAN hardware.
Version V19.3.0
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
Version V5.38.841
Kvaser Database Editor
Standalone installer for Kvaser Database Editor.
Version V2.5.475
Kvaser Memorator Tools
Logger setup and configuration program for Kvaser Memorator Professional, Kvaser Memorator and Kvaser Memorator Light.
Version V4.26.841
Kvaser CANKing
A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.
Version V6.21.288
